Так как из описания задания не понятно, нужно ли использовать предыдущие стенды в которых фигурировали centralRouter и inetRouter. Построим новую сеть с теми же именами.

Создание Vagrantfile

Зададим следующие характеристики для всех VM

CPU - 1
Memory - 512mb

Бедет создано 7 VM

inetRouter
centralRouter
testServer1
testClient1
testServer2
testClient2

Созданы следующие сети:

router-net 2 линка между inetRouter и centralRouter для LACP
vlan10 линк между testServer1, testClient1 и centralRouter
vlan20 линк между testServer2, testClient2 и centralRouter

Для линков в сети router-net включаем promiscuous mode

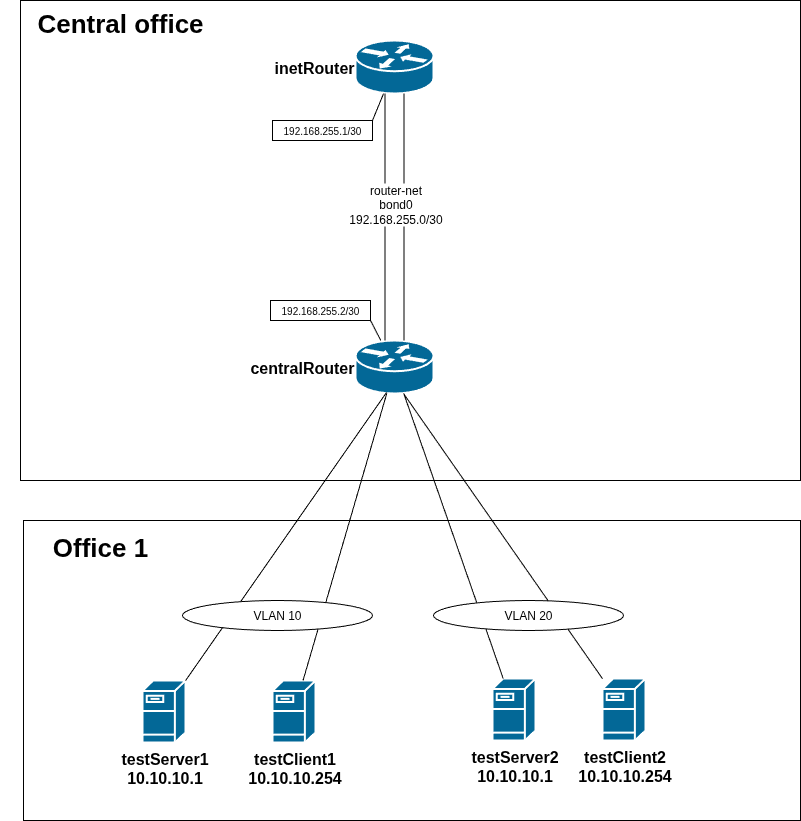

Текущая карта сети

Готовый Vagrantfile

Cоздание ansible.yml

Сценарий для Ansible будет выполнять следующие действия:

На inetRouter интерфейсы которые присоеденены к сети router-net, будут объеденены в bond0 в режиме LACP, и назначен ip 192.168.255.1/30
На inetRouter на интерфейсах которые объеденены в bond0, будет включен promiscuous mode
На centralRouter интерфейсы которые присоеденены к сети router-net, будут объеденены в bond0 в режиме LACP, и назначен ip 192.168.255.2/30
На centralRouter на интерфейсах которые объеденены в bond0, будет включен promiscuous mode
На centralRouter на интерфейсе который присоеденен к сети vlan10, будет создан vlan c тегом 10
На centralRouter на интерфейсе который присоеденен к сети vlan20, будет создан vlan c тегом 20
На testServer1 на интерфейсе который присоеденен к сети vlan10, будет создан vlan c тегом 10 и задан ip 10.10.10.1
На testClient1 на интерфейсе который присоеденен к сети vlan10, будет создан vlan c тегом 10 и задан ip 10.10.10.254
На testServer2 на интерфейсе который присоеденен к сети vlan20, будет создан vlan c тегом 20 и задан ip 10.10.10.1
На testClient2 на интерфейсе который присоеденен к сети vlan20, будет создан vlan c тегом 20 и задан ip 10.10.10.254

Готовый ansible.yml

Проверка

Запускаем vagrant

alex@ubuntu-pc:~/Документы/37$ vagrant up
Bringing machine 'inetRouter' up with 'virtualbox' provider...
Bringing machine 'centralRouter' up with 'virtualbox' provider...
Bringing machine 'testServer1' up with 'virtualbox' provider...
Bringing machine 'testClient1' up with 'virtualbox' provider...
Bringing machine 'testServer2' up with 'virtualbox' provider...
Bringing machine 'testClient2' up with 'virtualbox' provider...
==> inetRouter: Importing base box 'ubuntu/jammy64'...
==> inetRouter: Matching MAC address for NAT networking...
==> inetRouter: Checking if box 'ubuntu/jammy64' version '20241002.0.0' is up to date...
==> inetRouter: Setting the name of the VM: 37_inetRouter_1775546834028_76172
==> inetRouter: Clearing any previously set network interfaces...
==> inetRouter: Preparing network interfaces based on configuration...
    inetRouter: Adapter 1: nat
    inetRouter: Adapter 2: intnet
    inetRouter: Adapter 3: intnet
==> inetRouter: Forwarding ports...
    inetRouter: 22 (guest) => 2222 (host) (adapter 1)
==> inetRouter: Running 'pre-boot' VM customizations...
==> inetRouter: Booting VM...
==> inetRouter: Waiting for machine to boot. This may take a few minutes...
...


...
PLAY [centralRouter] ***********************************************************
skipping: no hosts matched

PLAY [testServer1] *************************************************************
skipping: no hosts matched

PLAY [testClient1] *************************************************************
skipping: no hosts matched

PLAY [testServer2] *************************************************************
skipping: no hosts matched

PLAY [testClient2] *************************************************************

TASK [Gathering Facts] *********************************************************
ok: [testClient2]

TASK [get int name to link vlan20] *********************************************
changed: [testClient2]

TASK [add vlan netplan] ********************************************************
changed: [testClient2]

RUNNING HANDLER [apply netplan] ************************************************
changed: [testClient2]

PLAY RECAP *********************************************************************
testClient2                : ok=4    changed=3    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0

Проверка LACP

Подключимся к inetRouter, состояния интерфейсов, и доступность centralRouter

vagrant@inetRouter:~$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:a0:d2:64:f1:28 brd ff:ff:ff:ff:ff:ff
    inet 10.0.2.15/24 metric 100 brd 10.0.2.255 scope global dynamic enp0s3
       valid_lft 86080sec preferred_lft 86080sec
    inet6 fd17:625c:f037:2:a0:d2ff:fe64:f128/64 scope global dynamic mngtmpaddr noprefixroute
       valid_lft 86282sec preferred_lft 14282sec
    inet6 fe80::a0:d2ff:fe64:f128/64 scope link
       valid_lft forever preferred_lft forever
3: enp0s8: <BROADCAST,MULTICAST,PROMISC,SLAVE,UP,LOWER_UP> mtu 1500 qdisc fq_codel master bond0 state UP group default qlen 1000
    link/ether c6:91:6a:ba:79:e8 brd ff:ff:ff:ff:ff:ff permaddr 08:00:27:8c:41:2d
4: enp0s9: <BROADCAST,MULTICAST,PROMISC,SLAVE,UP,LOWER_UP> mtu 1500 qdisc fq_codel master bond0 state UP group default qlen 1000
    link/ether c6:91:6a:ba:79:e8 brd ff:ff:ff:ff:ff:ff permaddr 08:00:27:ae:40:e4
5: bond0: <BROADCAST,MULTICAST,MASTER,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether c6:91:6a:ba:79:e8 brd ff:ff:ff:ff:ff:ff
    inet 192.168.255.1/30 brd 192.168.255.3 scope global bond0
       valid_lft forever preferred_lft forever
    inet6 fe80::c491:6aff:feba:79e8/64 scope link
       valid_lft forever preferred_lft forever
vagrant@inetRouter:~$ ping 192.168.255.2
PING 192.168.255.2 (192.168.255.2) 56(84) bytes of data.
64 bytes from 192.168.255.2: icmp_seq=1 ttl=64 time=4.66 ms
64 bytes from 192.168.255.2: icmp_seq=2 ttl=64 time=85.7 ms
64 bytes from 192.168.255.2: icmp_seq=3 ttl=64 time=11.0 ms
64 bytes from 192.168.255.2: icmp_seq=4 ttl=64 time=0.567 ms
64 bytes from 192.168.255.2: icmp_seq=5 ttl=64 time=71.5 ms
^C
--- 192.168.255.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4100ms
rtt min/avg/max/mdev = 0.567/34.693/85.702/36.286 ms

Как видим появился интерфейс bond0 с ip 192.168.255.1/30. А так же centralRouter отвечает на пинг.

Теперь отключим один из интерфейсов который входит в bond0.

vagrant@inetRouter:~$ sudo ip link set down enp0s8
vagrant@inetRouter:~$ ping 192.168.255.2
PING 192.168.255.2 (192.168.255.2) 56(84) bytes of data.
64 bytes from 192.168.255.2: icmp_seq=1 ttl=64 time=28.2 ms
64 bytes from 192.168.255.2: icmp_seq=2 ttl=64 time=33.0 ms
64 bytes from 192.168.255.2: icmp_seq=3 ttl=64 time=2.67 ms
^C
--- 192.168.255.2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2029ms
rtt min/avg/max/mdev = 2.668/21.273/32.986/13.302 ms

Как видим доступность centralRouter осталась

Отключим второй интерфейс

vagrant@inetRouter:~$ sudo ip link set down enp0s9
vagrant@inetRouter:~$ ping 192.168.255.2
PING 192.168.255.2 (192.168.255.2) 56(84) bytes of data.
From 192.168.255.1 icmp_seq=1 Destination Host Unreachable
From 192.168.255.1 icmp_seq=2 Destination Host Unreachable
From 192.168.255.1 icmp_seq=3 Destination Host Unreachable
^C
--- 192.168.255.2 ping statistics ---
4 packets transmitted, 0 received, +3 errors, 100% packet loss, time 3090ms
pipe 3

Вот теперь centralRouter не доступен.

Включим первый интерфейс

vagrant@inetRouter:~$ sudo ip link set up enp0s8
vagrant@inetRouter:~$ ping 192.168.255.2
PING 192.168.255.2 (192.168.255.2) 56(84) bytes of data.
64 bytes from 192.168.255.2: icmp_seq=1 ttl=64 time=12.5 ms
64 bytes from 192.168.255.2: icmp_seq=2 ttl=64 time=1.87 ms
^C
--- 192.168.255.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1024ms
rtt min/avg/max/mdev = 1.867/7.188/12.509/5.321 ms

Связь с centralRouter восстановилась

Проверка VLAN

Поключимся к testClient1, посмотрим вывод ip a

vagrant@testClient1:~$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:a0:d2:64:f1:28 brd ff:ff:ff:ff:ff:ff
    inet 10.0.2.15/24 metric 100 brd 10.0.2.255 scope global dynamic enp0s3
       valid_lft 85760sec preferred_lft 85760sec
    inet6 fd17:625c:f037:2:a0:d2ff:fe64:f128/64 scope global dynamic mngtmpaddr noprefixroute
       valid_lft 86222sec preferred_lft 14222sec
    inet6 fe80::a0:d2ff:fe64:f128/64 scope link
       valid_lft forever preferred_lft forever
3: enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 08:00:27:45:b2:6d brd ff:ff:ff:ff:ff:ff
    inet6 fe80::a00:27ff:fe45:b26d/64 scope link
       valid_lft forever preferred_lft forever
4: vlan10@enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 08:00:27:45:b2:6d brd ff:ff:ff:ff:ff:ff
    inet 10.10.10.254/24 brd 10.10.10.255 scope global vlan10
       valid_lft forever preferred_lft forever
    inet6 fe80::a00:27ff:fe45:b26d/64 scope link
       valid_lft forever preferred_lft forever

Видим, что присутсвуем инретфейс vlan10 c ip 10.10.10.254/24. Проверим доступность testServer1

vagrant@testClient1:~$ ping 10.10.10.1
PING 10.10.10.1 (10.10.10.1) 56(84) bytes of data.
64 bytes from 10.10.10.1: icmp_seq=1 ttl=64 time=4.49 ms
64 bytes from 10.10.10.1: icmp_seq=2 ttl=64 time=0.498 ms

--- 10.10.10.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.498/2.492/4.487/1.994 ms

testServer1 доступен.

То же самое проверим и на testClient2

vagrant@testClient2:~$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:a0:d2:64:f1:28 brd ff:ff:ff:ff:ff:ff
    inet 10.0.2.15/24 metric 100 brd 10.0.2.255 scope global dynamic enp0s3
       valid_lft 85872sec preferred_lft 85872sec
    inet6 fd17:625c:f037:2:a0:d2ff:fe64:f128/64 scope global dynamic mngtmpaddr noprefixroute
       valid_lft 86352sec preferred_lft 14352sec
    inet6 fe80::a0:d2ff:fe64:f128/64 scope link
       valid_lft forever preferred_lft forever
3: enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 08:00:27:9a:7a:58 brd ff:ff:ff:ff:ff:ff
    inet6 fe80::a00:27ff:fe9a:7a58/64 scope link
       valid_lft forever preferred_lft forever
4: vlan20@enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 08:00:27:9a:7a:58 brd ff:ff:ff:ff:ff:ff
    inet 10.10.10.254/24 brd 10.10.10.255 scope global vlan20
       valid_lft forever preferred_lft forever
    inet6 fe80::a00:27ff:fe9a:7a58/64 scope link
       valid_lft forever preferred_lft forever

Как видим на testClient2 ip 10.10.10.254/24 имеет уже другой интерфейс, а имеено vlan20

vagrant@testClient2:~$ ping 10.10.10.1
PING 10.10.10.1 (10.10.10.1) 56(84) bytes of data.
64 bytes from 10.10.10.1: icmp_seq=1 ttl=64 time=5.83 ms
64 bytes from 10.10.10.1: icmp_seq=2 ttl=64 time=0.940 ms
64 bytes from 10.10.10.1: icmp_seq=3 ttl=64 time=0.424 ms
^C
--- 10.10.10.1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2004ms
rtt min/avg/max/mdev = 0.424/2.396/5.826/2.434 ms

И testServer2 доступен

Все готово!
